PRODUCTS Home>> DS300-1800 Ground Roll Slitting Machine

NAME:

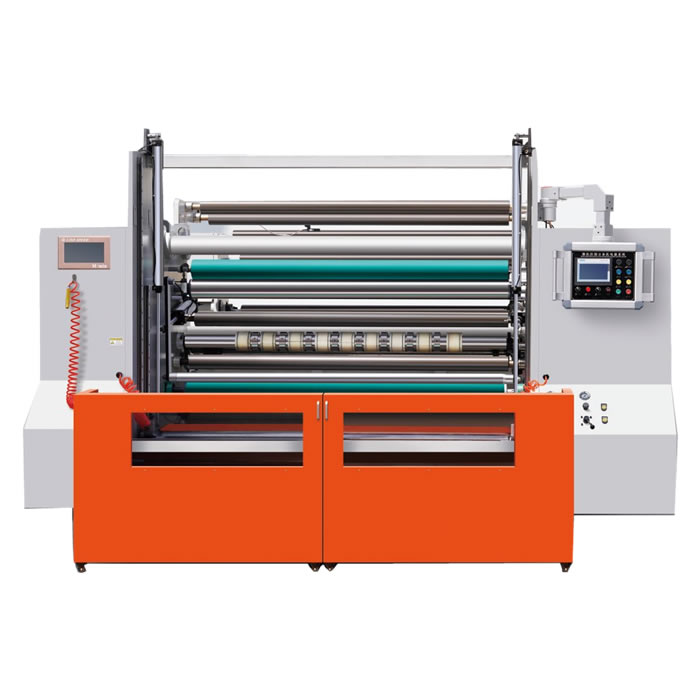

  DS300-1800 Ground Roll Slitting Machine

NO.:

 Detailed instructions
Characteristic
1. 3 inch and 6 inch shaftless air Pressure cone top unwinding
2.Laser paper core positioning technology
3.Error correction method EPC/LPC (web guide)
4.Main control system (PLC+ HMI)
5.Subsection tension control technology(auto tape control)
6.Drive mode (Asynchronous servo motor control)

7.Cutting methods (straight cut or round cut)

Main Technical Variables:

 Mechanical speed  350m/min
 Max. Unwinding diameter  1200mm
 Cutting width  100-1800mm
 Max.Rewinding diameter  1200mm
 Overall dimensions(L x W x H)  2900 x 3200 x 1850mm
 Machine weight  (about)5000kg



Related products : DS350-1300D Computer High Speed Slitting Machine   DS400-1300 Computer High Speed Slitting Machine   S400-1300D Computer High Speed Slitting Machine   S500-1300D Computer High Speed Slitting Machine   S500-1300B Computer High Speed Slitting Machine
