PRODUCTS Home>> DS400-1300 Computer High Speed Slitting Machine

NAME:

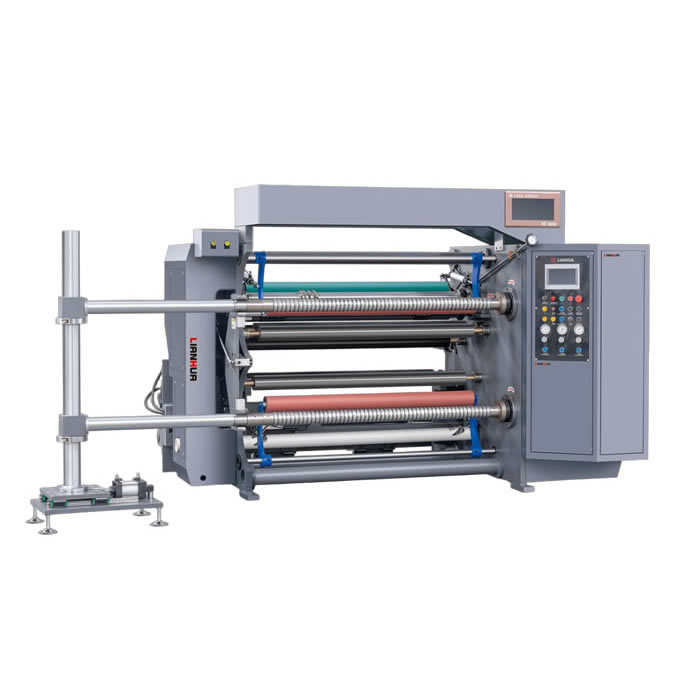

  DS400-1300 Computer High Speed Slitting Machine

NO.:

 Detailed instructions
Characteristic
1. 3 inch and 6 inch shaftless air Pressure cone top unwinding
2.Laser paper core positioning technology
3.Error correction method EPC/LPC (web guide)
4.Main control system (PLC+ HMI)
5.Subsection tension control technology(auto tape control)
6.Drive mode (Asynchronous servo motor control)

7.Cutting methods (straight cut or round cut)

Main Technical Variables:

 Mechanical speed  400m/min
 Max. unwinding diameter  800mm
 Cutting width  25-1300mm
 Max. rewinding diameter  600mm
 Driving type  3Motor
 Cutting type  Straight / round cutting knife
 Main control system  PLC+HMI
 Tension control type  Auto taper control
 Web guide type  EPC&LPC
 Machine weight  About 3000kg
 Overall dimensions(L x W x H)  2500x 3500x 1850mm
